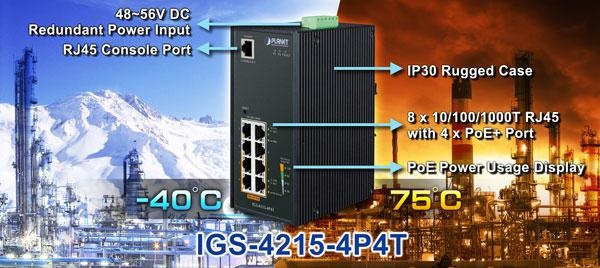

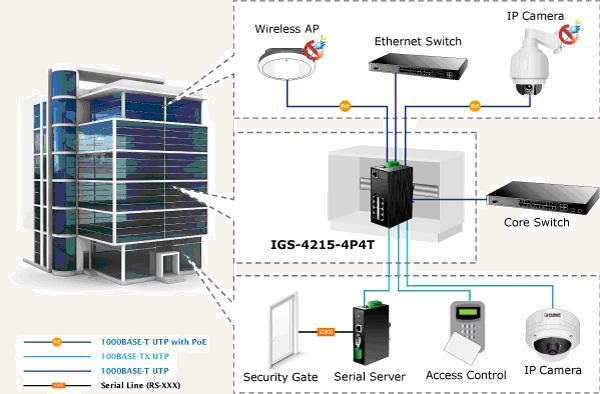

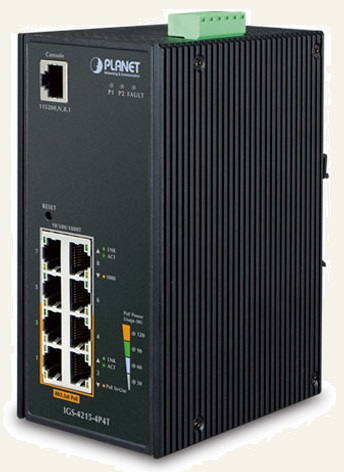

Hardware Specifications
|
|
Copper Ports
|
8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
|
|
PoE Injector Port
|
4 ports with 802.3af/802.3at PoE injector function (Port-1 to Port-4)
|
|
Console
|
1 x RS232-to-RJ45 serial port (115200,8, N, 1)
|
|
Switch Architecture
|
Store-and-Forward
|
|
Switch Fabric
|
16Gbps/non-blocking
|
|
Switch Throughput@64 bytes
|
11.9Mpps@64 bytes
|
|
MAC Address Table
|
8K entries
|
|
Shared Data Buffer
|
4.1 megabits
|
|
Flow Control
|
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
|
|
Jumbo Frame
|
10 Kbytes
|
|
Reset Button
|
< 5 sec: System reboot
> 5 sec: Factory default
|
|
LED
|
3 x LED for System and Power:
• Green: DC Power 1
• Green: DC Power 2
• Green: Power Fault
2 x LED for PoE Copper Port (Port-1~Port-4):
• Green: LNK/ACT
• Orange: PoE-in-use
2 x LED for 10/100/1000T Copper Port (Port-5~Port-8):
• Green: LNK/ACT
• Orange: 1000Mbps
4 x LED for PoE Power Usage (W)
• Orange: 30, 60, 90 and 120W
|
|
Connector
|
Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
|
|
Alarm
|
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC
|
|
Power Requirements
|
48~56V DC, 3.5A (max.)
|
|
Power Consumption/ Dissipation
|
5.04 watts, 17.1BTU (Standby without PoE function)
7.28 watts, 23 BTU (Full loading without PoE function)
151.28 watts, 516.1 BTU (Full loading with PoE function)
|
|
Dimensions (W x D x H)
|
161 x 107 x 72 mm
|
|
Weight
|
1001g
|
|
ESD Protection
|
6KV DC
|
|
Enclosure
|
IP30 aluminum case
|
|
Installation
|
DIN-rail kit and wall-mount ear
|
|

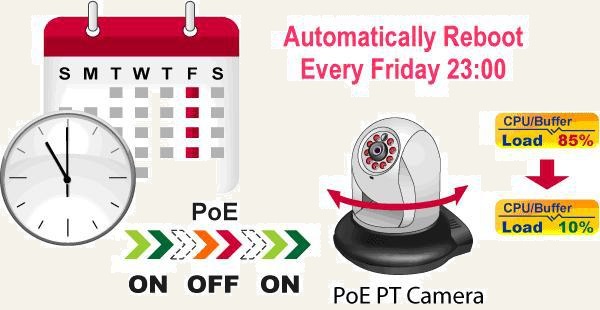

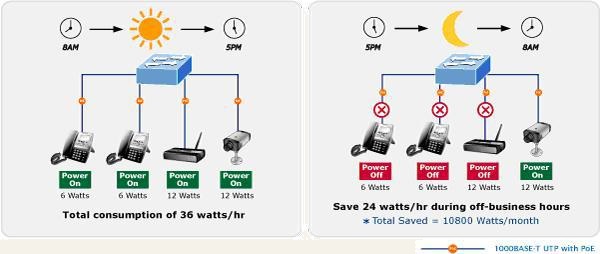

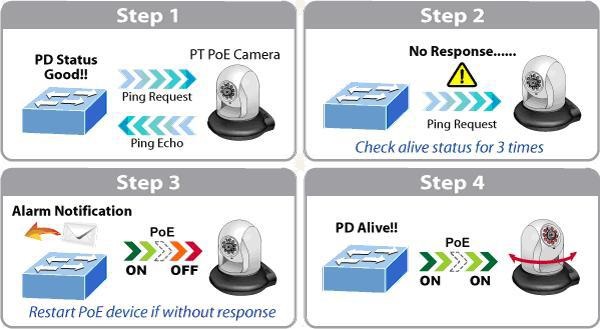

Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af/802.3at Power over Ethernet PSE
|
|
PoE Power Supply Type
|
End-span
|
|
PoE Power Output
|
IEEE 802.3af Standard
- Per port 48V~56V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
- Per port 50V~56V DC (depending on the power supply), max. 36 watts
|
|
Power Pin Assignment
|
1/2(+), 3/6(-)
|
|
PoE Power Budget
|
144 watts (depending on power input)
|
|
Max. Number of Class 2 PD
|
4
|
|
Max. Number of Class 3 PD
|
4
|
|
Max. Number of Class 4 PD
|
4
|
|
Layer 2 Functions
|
|
Port Mirroring
|
TX/RX/Both
Many-to-1 monitor
|
|
VLAN
|
802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLAN
|
|
Link Aggregation
|
IEEE 802.3ad LACP and static trunk
Supports 4 groups with 4 ports per trunk
|
|
Spanning Tree Protocol
|
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
|
|
IGMP Snooping
|
IPv4 IGMP snooping v2, v3
IGMP querier
Up to 256 multicast groups
|
|
MLD Snooping
|
IPv6 MLD snooping v2, v3, up to 256 multicast groups
|
|
Access Control List
|
IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
|
|
QoS
|
8 mapping IDs to 8 level priority queues
- Port number
- 802.1p priority
- DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control
|
|
Security
|
IEEE 802.1X port-based authentication
Built-in RADIUS client to cooperate with RADIUS server
RADIUS/TACACS+ authentication
IP-MAC port binding
MAC filtering
Static MAC address
DHCP snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Storm control support
- Broadcast/unknown unicast/unknown multicast
|
|
Management Functions
|
|
Basic Management Interfaces
|
Web browser, Console, Telnet, SNMP v1, v2c, v3
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
Configuration upload/download through HTTP/TFTP
Remote/local syslog
System log
LLDP protocol
SNTP
PLANET Smart Discovery Utility
|
|

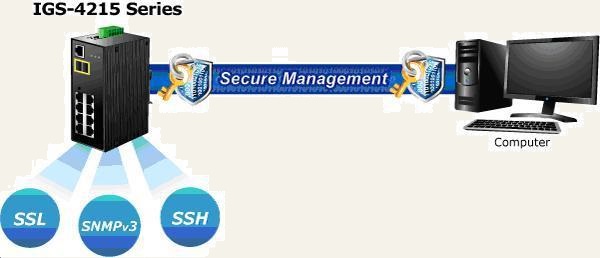

Secure Management Interfaces
|
SSH, SSL, SNMP v3
|
|
SNMP MIBs
|
RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB v2
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
|
|
Standards Conformance
|
|
Regulatory Compliance
|
FCC Part 15 Class A, CE
|
|
Stability Testing
|
IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
|
|
Standards Compliance
|
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
|
|
Environment
|
|
Operating
|
Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
|
Storage
|
Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
