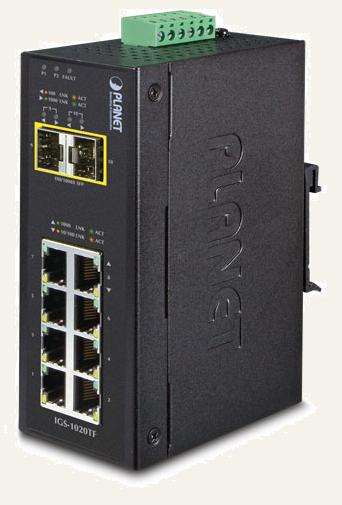

Hardware Specifications
|
|
Copper Ports
|
8 x 10/100/1000BASE-T RJ45 TP
Auto-MDI/MDI-X, auto-negotiation
|
|
SFP/mini-GBIC Slots
|
2 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10)
Compatible with 100BASE-FX SFP
|
Switch
Processing Scheme
|
Store-and-Forward
|
|
Switch Fabric
|
20Gbps (non-blocking)
|
Switch Throughput
(packet per second)
|
14.88Mpps@64bytes
|
|
MAC Address Table
|
4K entries
|
|
Flow Control
|
Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
|
|
Jumbo Frame
|
9216 bytes
|
|
Connector
|
Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
|
|
Alarm
|
Provides one relay output for power failure
Alarm Relay current carry ability: 1A @ DC 24V
|
|
LED Indicator
|
3 x LED for System and Power
:
Green: DC Power 1
Green: DC Power 2
Red: Power Fault
2 x LED for Per Copper Port (Port-1~Port-8)
:
Green: 1000 LNK/ACT
Orange:100 LNK/ACT
2 x LED for Per Mini-GBIC Interface (Port-9 and Port-10)
:
Green: 1000 LNK/ACT
Orange:100 LNK/ACT
|
|
ESD Protection
|
6KV DC
|
|
Enclosure
|
IP30 type metal case
|
|
Installation
|
DIN rail kit and wall-mount ear
|
|
Dimensions (W x D x H)
|
56 x 87 x 135 mm
|
|
Weight
|
540g
|
|

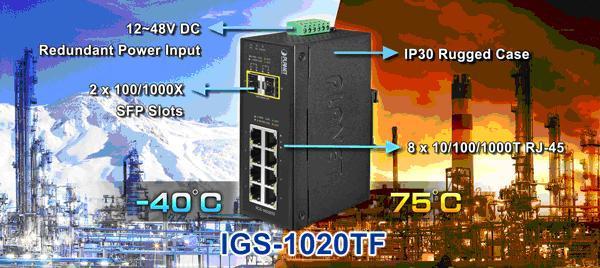

Power Requirements
|
DC 12~48V or AC 24V

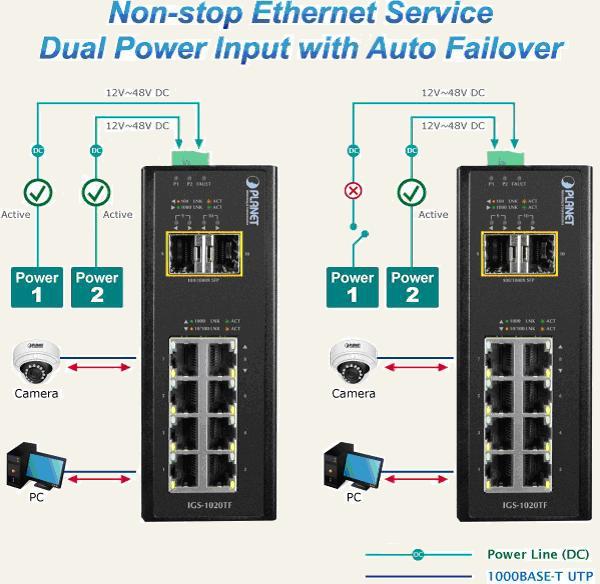

Redundant power with polarity reverses protection function
|
Power
Consumption/Dissipation
|
8.7 watts/29.69BTU
|
|
Cable
|
Twisted-pair
- 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters
- 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters
- 1000BASE-T: 4-pair UTP Cat. 5e, 6 up to 100 meters

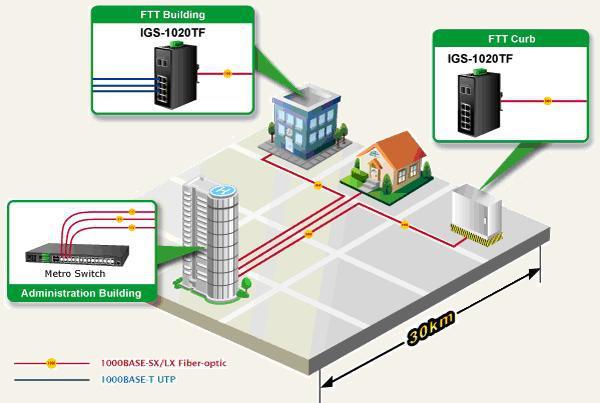

Fiber-Optic Cable
- 1000BASE-SX:
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m
- 1000BASE-LX:
9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120 kilometers (vary on SFP module)
- 100BASE-FX:
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 2 kilometers
9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers (vary on SFP module)
|
