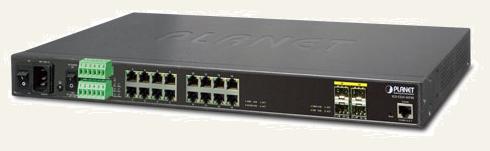

Hardware Specifications
|
|

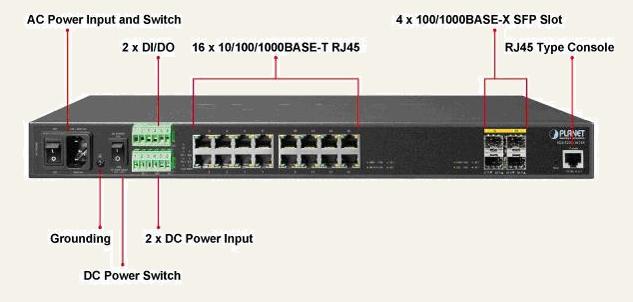

Copper Ports
|
16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
|
|
SFP/mini-GBIC Slots
|
4 100/1000BASE-X SFP interfaces
Compatible with 100BASE-FX SFP transceiver
|
|
Console
|
1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
|
|
Switch Architecture
|
Store-and-Forward
|
|
Switch Fabric
|
40Gbps/non-blocking
|
|
Throughput
|
29.76Mpps@64Bytes
|
|
Address Table
|
8K entries, automatic source address learning and aging
|
|
Shared Data Buffer
|
4M bits
|
|
Flow Control
|
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
|
|
Jumbo Frame
|
9K bytes
|
|
Reset Button
|
< 5 sec: System reboot
> 5 sec: Factory default
|
|
Dimensions (W x D x H)
|
440 x 200 x 44.5 mm, 1U height
|
|
Weight
|
2672kg
|
|
LED
|
System:
AC (Green), DC1 (Green), DC2 (Green), Fault ( Red )
Ring (Green), R.O. (Green), DI/DO ( Red )
10/100/1000T RJ45 Interfaces (Port 1 to Port 16):
1000Mbps LNK/ACT (Green)
10/100Mbps LNK/ACT (Orange)
100/1000Mbps SFP Interfaces (Port 17 to Port 20):
1000Mbps LNK/ACT (Green)
100Mbps LNK/ACT (Orange)
|
|
Power Consumption
|
Max. 15.2 watts/51.8 BTU
|
|
Power Requirements - AC
|
AC 100~240V, 50/60Hz 0.4A
|
|
Power Requirements - DC
|
DC 36~60V, 0.6A
|
|
DI/DO
|
2 Digital Input (DI):
Level 0: -24~2.1V
Level 1: 2.1~24V
Max. input current: 10mA
2 Digital Output (DO): Open collector to 24VDC, 100mA
|
|
ESD Protection
|
6KV DC
|
|
Layer 2 Management Functions
|
|
Port Configuration
|
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
|
|
Port Status
|
Display each port's speed duplex mode, link status, flow control status,
auto-negotiation status, trunk status
|
|
Port Mirroring
|
TX/RX/Both
Many-to-1 monitor
|
|
VLAN
|
802.1Q tagged based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
MVR (Multicast VLAN registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs
|
|
Link Aggregation
|
IEEE 802.3ad LACP/static trunk
10 groups with 8 port per trunk
|
|

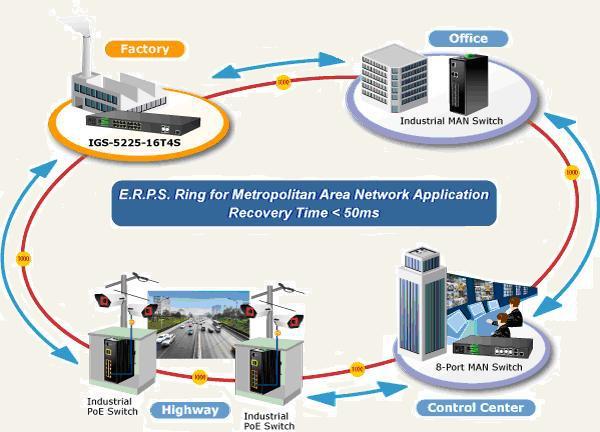

Spanning Tree Protocol
|
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
|
|
QoS
|
Traffic classification based, Strict priority and WRR
8-level priority for switching:
- Port Number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/ToS field in IP packet
|
|
IGMP Snooping
|
IGMP (v1/v2/v3) Snooping, up to 255 multicast groups
IGMP Querier mode support
|
|
MLD Snooping
|
MLD (v1/v2) Snooping, up to 255 multicast groups
MLD Querier mode support
|
|
Access Control List
|
IP-based ACL/MAC-based ACL
Up to 256 entries
|
|
Bandwidth Control
|
Per port bandwidth control
Ingress: 100Kbps~1000Mbps
Egress: 100Kbps~1000Mbps
|
|

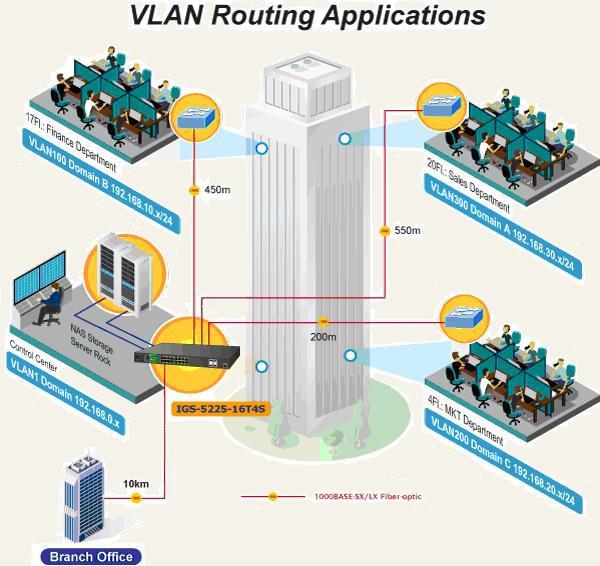

Layer 3 Functions
|
|
IP Interfaces
|
Max. 8 VLAN interfaces
|
|
Routing Table
|
Max. 32 routing entries
|
|
Routing Protocols
|
IPv4 software static routing
IPv6 software static routing
|
|
Management
|
|
Basic Management Interfaces
|
Console/Telnet/Web browser/SNMP v1, v2c
|
|

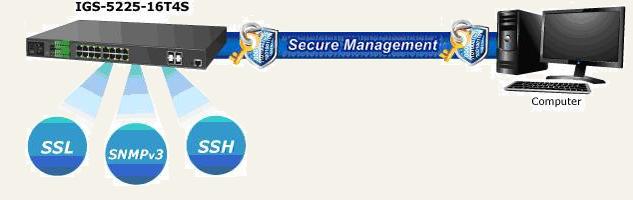

Secure Management Interfaces
|
SSH, SSL, SNMPv3
|
|
SNMP MIBs
|
RFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
|
|
Standards Conformance
|
|
Regulatory Compliance
|
FCC Part 15 Class A, CE
|
|
Standards Compliance
|
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 1588v2
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
|
|
Environment
|
|
Operating
|
Temperature: -10 ~ 60 degrees C for AC power input
Temperature: -40 ~ 75 degrees C for DC power input
Relative Humidity: 5 ~ 95% (non-condensing)
|
|
Storage
|
Temperature: -40 ~ 80 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
