PLANET IGS-20040MT - промышленный 20-портовый L2+ управляемый full Gigabit Ethernet коммутатор

Используя усовершенствованные технологии волоконно-оптического Ethernet, IGS-20040MT предлагает скорость обмена данными до 1 Гбит/с через интерфейс Optical Fiber и расстояние передачи до 120 км.

Промышленный коммутатор IGS-20040MT - идеальное решение для поставщиков услуг, таких как Интернет-провайдеры и телекоммуникационные компании, для создания общегородской сети (MAN) на основе оптоволоконной технологии.


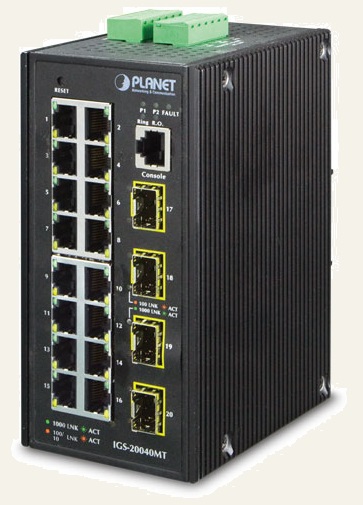

  IGS-20040MT   Промышленный 20-портовый L2+ управляемый full
  Gigabit Ethernet коммутатор

Сфера применения PLANET IGS-20040MT

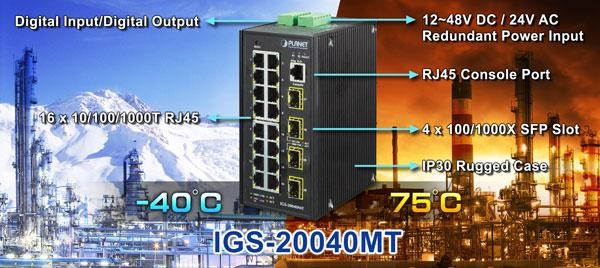

Возможности PLANET IGS-20040MT

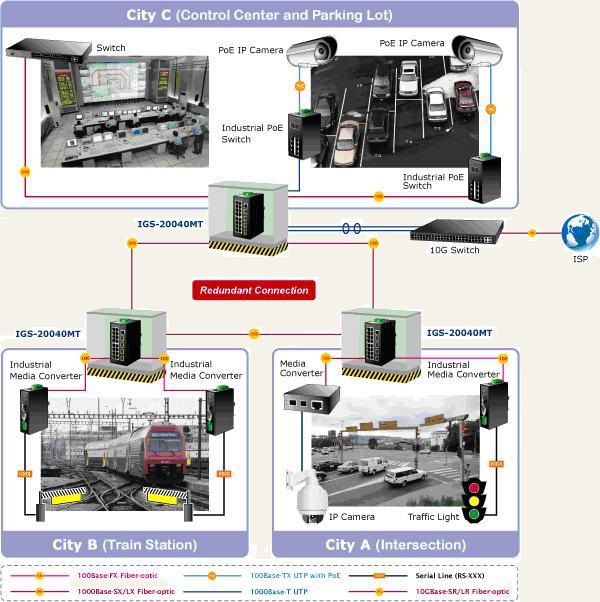

Применение PLANET IGS-20040MT

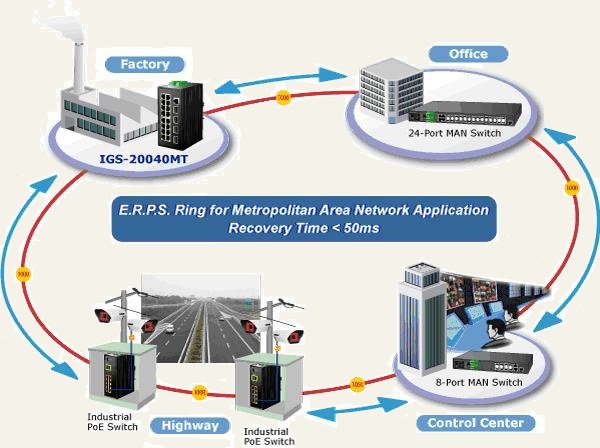

Применение PLANET IGS-20040MT

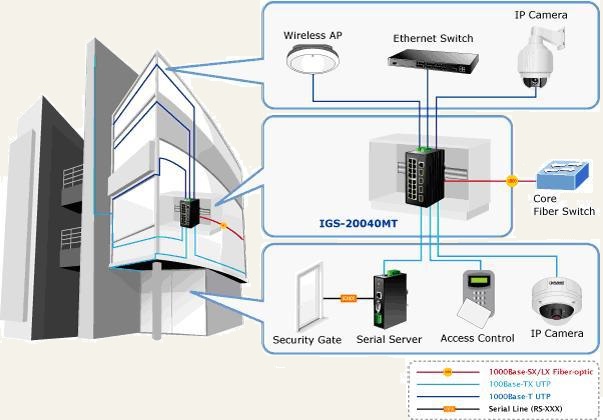

Применение PLANET IGS-20040MT

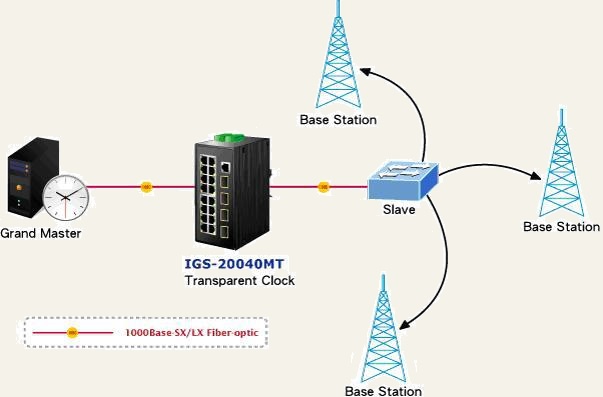

Применение PLANET IGS-20040MT



Спецификация PLANET IGS-20040MT

   Hardware Specifications
Copper Ports 16 10/ 100/1000Base-T RJ45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 4 1000Base-SX/LX/BX SFP interfaces (Port-17 to Port-20)
Compatible with 100Base-FX SFP
Console 1 x RJ45 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 40Gbps / non-blocking
Throughput (packet per second) 25.6Mpps
Address Table 8K entries, automatic source address learning and ageing
Shared Data Buffer 4Mbits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 9Kbytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory Default
ESD Protection 6KV DC
EFT Protection 6KV DC
Enclosure IP30 aluminum case
Installation DIN rail kit and wall-mount kit
Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 0 & DI 1; Pin 3/4 for DO 0 & DO 1; Pin 5/6 for GND
Alarm One relay output for power failure. Alarm Relay current carry ability: 1A @ 24V AC
DI/DO 2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V)
          Level 1: 2.1V~24V (±0.1V)
          Input Load to 24V DC, 10mA max.
2 Digital Output (DO): Open collector to 24V DC, 100mA (max.)
LED Indicator System:
   Power 1 (Green)
   Power 2 (Green)
   Fault Alarm (Green)
   Ring (Green)
   R.O. (Green)
Per 10/100/1000T RJ45 Port:
   1000 LNK/ACT (Green)
   10/100 LNK/ACT (Orange)
Per SFP Interface:
   1000 LNK/ACT (Green)
   100 LNK/ACT (Orange)
Dimensions (W x D x H) 72 x 107 x 152 mm
Weight 1043g
Power Requirements 12V to 48V DC
24V AC
Power Consumption 8 watts / 27BTU (System on)
17 watts / 57BTU (Full loading)
   Layer 2 Functions
Basic Management Interfaces Web browser, Remote Telnet, SNMPv1, v2c, local console
Secure Management Interface SSH, SSL, SNMPv3
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Power saving mode control
Port Status Display each port’s speed duplex mode, link status, Flow control status.
Auto negotiation status, trunk status.
Port Mirroring TX / RX / Both
Many to 1 monitor
VLAN 802.1Q tagged-based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs
Link Aggregation IEEE 802.3ad LACP / Static Trunk
Support 10 groups of 8-Port trunk support
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
 - Port Number
 - 802.1p priority
 - 802.1Q VLAN tag
 - DSCP/TOS field in IP Packet
IGMP Snooping IGMP (v1/v2/v3) Snooping, up to 255 multicast Groups
IGMP Querier mode support
MLD Snooping MLD (v1/v2) Snooping, up to 255 multicast Groups
MLD Querier mode support
Access Control List IP-Based ACL / MAC-based ACL
Up to 256 entries
Bandwidth Control Per port bandwidth control
■ Ingress: 500Kbps~1000Mbps
■ Egress: 500Kbps~1000Mbps
SNMP MIBs RFC-1213 MIB-II
IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
   Layer 3 Functions
IP Interfaces Max. 128 VLAN interfaces
Routing Table Max. 32 routing entries
Routing Protocols IPv4 software static routing
IPv6 software static routing
   Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Standards Compliance Modbus TCP
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX / 100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000Base-T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 1588v2
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
FRC 3810 MLD version 2
   Environment
Operating Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
